VMEPL

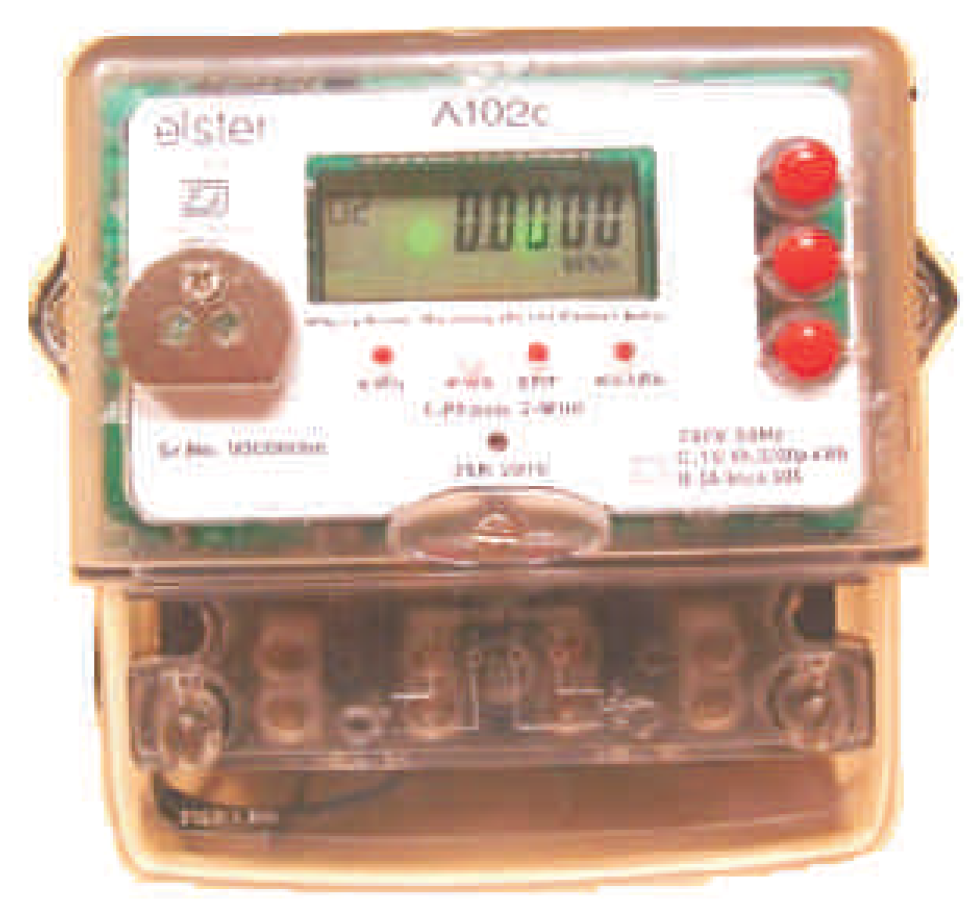

Electronic Single Phase Meter

Compact yet advanced domestic metering.

Features

Options

The successful range of single phase meters from Elster Metering Systems provide a cost effective solution for six rate domestic applications.

To further enhance security, the main meter cover is permanently secured to the base during the manufacturing process. The meter also provides the optical IEC 62056-21 (formerly IEC 61107) communications and 2 . 4 G Hz LPR communications.

The liquid crystal display has large, high contrast characters that can be viewed from a wide angle.Multiple parameters are displayed with unique identifiers.

The energy registers can be configured for the required number of digits and for the position of the decimal point.

The meter offers high security and detects many of the most commonly used tamper techniques.

Security features of the meter include reverse run logand count; power fail log and elapsed time count;hours in anti-creep and hours since last power up time.
These are stored as security data and can be read via the optical communications ports.

The meter has the option of optical IEC 62056-21 ( f o rm e r l y I E C 6 1 1 0 7 ) o r 2.4GHz LPR communications.

Both the methods of communication allow the meter registers and security data to be read electronically from a laptop or hand-held device, greatly reducing the possibility of manual meter reading errors.

The meter can be a simple import meter or for import/export for domestic or small scale generation sites. The meter offers six rate operation. The meter measures reactive and apparent energy in addition to active energy and is ideally suited for utilities who wishto bill or monitor energy consumption based on kvarh or kvah measurement. The meter also can measure average power factor. Meters can be supplied to meet accuracy Class 1 Of IS13779 requirements.

They are BIS approved, and have an ingress protection of Ip51
